BCM-44 / BCM-44B

Bare-hand Live-line work safety.

BCM

When it comes to boom current monitoring, we stay well-grounded.

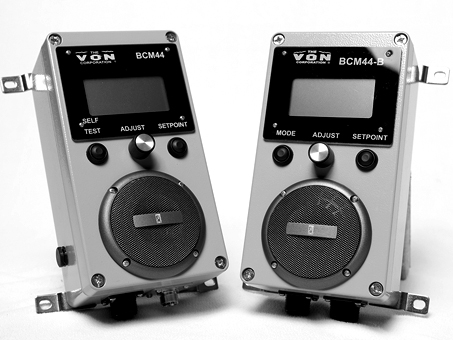

Model # BCM-44, BCM-44B

Extremely rugged and dependable design
Designed for operation in a variety of weather conditions
Automatic Safety Check for shorted or mis-wired test cables
Low Range: 0-99 microamps A.C. or D.C. with 0.1 μA resolution
High Range: 0-500 microamps A.C. or D.C. with 1 μ A resolution
Display variable set point

BCM-44 is a state-of-the-art current monitor designed for continuous operation during bare-hand work. The BCM has an adjustable set point between 1 and 500 microamperes AC or DC. A 106DB multi-tone horn sounds an audible warning if this current set point is ever exceeded during use.

	BCM-44	BCM-44B
Display Type	Liquid crystal display w/ heater Digits are 0.75 inches (2 cm)	Liquid crystal display w/ heater Digits are 0.75 inches (2 cm)
Range	0-400 microamperes AC or DC 1 microampere resolution	0-400 microamperes AC or DC 1 microampere resolution
Voltage Drop	Less than 0.5 volts full scale	Less than 0.5 volts full scale
Measurement System	True RMS within 1% of full scale (400uA) +/- 2 LSD	True RMS within 1% of full scale (400uA) +/- 2 LSD
Set Point(s)	Controls allow selection of six presets (27, 40, 66, 93, 133, 289 microamperes) or dial adjustable position variable from 5 to 500 microamperes.	Controls allow selection of six presets (27, 40, 66, 93, 133, 289 microamperes) or dial adjustable position variable from 5 to 500 microamperes.
Set Point Accuracy	Within two counts	Within two counts
Audible Alarm	Internal 90dB vibrating horn sounds when current exceeds set point, or when measuring lead is accidentally grounded.	Internal 90dB vibrating horn sounds when current exceeds set point, or when measuring lead is accidentally grounded.
Power Requirements	12 or 24 volts D.C., negative ground, draws 0.3 A (0.5 A @ 24V) with horn sounding and 0.06 A under normal operation.	12 or 24 volts D.C., negative ground, draws 0.3 A (0.5 A @ 24V) with horn sounding and 0.06 A under normal operation.
Enclosure	Precision die-cast aluminum case 4.72” (12cm) x 8.66” (22cm) x 3.14” (8cm) with external mounting brackets	Precision die-cast aluminum case 4.72” (12cm) x 8.66” (22cm) x 3.14” (8cm) with external mounting brackets
Weight	5 Lbs. (2.3kg)	5 Lbs. (2.3kg)
Input for Test	UHF coaxial connector	7 pin Amphenol receptacle with cap
Input for Power	Flange mounted 3 pin Amphenol receptacle with cap	Flange mounted 3 pin Amphenol receptacle with cap
Test Cable	25’ (7.6m) shielded coaxial cable provided	4’ (1.2m) shielded six conductor cable provided
Power Cable	4’ (1.2m) three conductor cable provided	4’ (1.2m) three conductor cable provided

Additional Features of the BCM 44B:
• Meter accuracy check using the internal precision
current source
• Metering of test circuit for boom metering bands
• Metering of test circuit for hoses
• Metering of test circuit for leveling rods or fi ber optics
• Total test including the sum of all three circuits
• Continuity check of each input circuit
